1

 Isocratic HPLC System

1Set

1.1

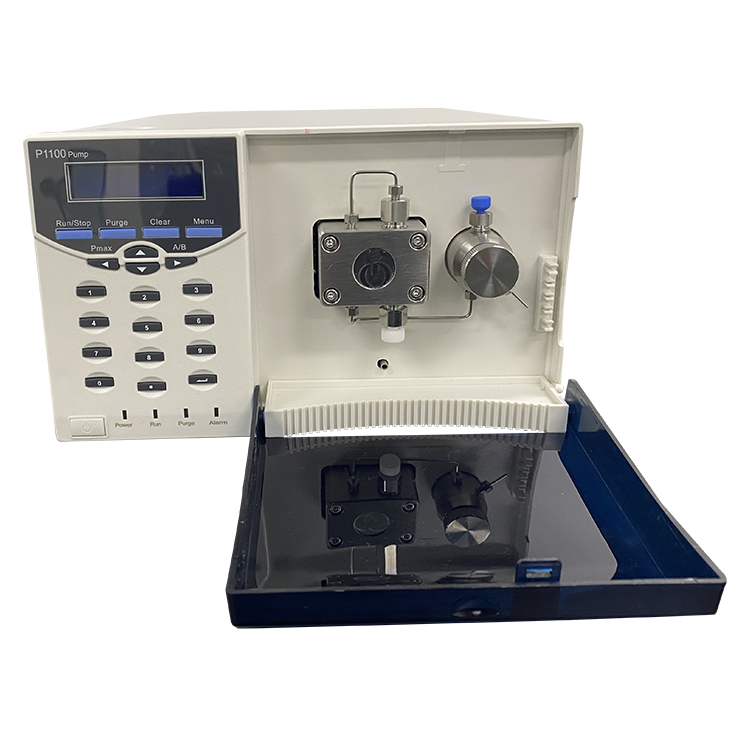

 High Pressure Constant Flow Pump

1

1） Double plunger reciprocating pump

2） Flow Range: 0.001mL/min-10.000mL/min;

Setting Step Size: 0.001mL/min

3） Flow Accuracy：≤±0.3% (1.00ml/min, H2O,R.T.,8.5MPa)

4） Flow stability: RSD≤0.1% (1.00ml/min, H2O,R.T.,8.5MPa)

5） Maximum Pressure: 42MPa

6） Psi, Mpa, bar (Optional Display of Pressure Unit)

7） Flow Accuracy Calibration

8） Power: AC 220V±10%, 50Hz

9） External Dimension

(Length x Width x High): 420mm×260mm×160mm

1.2

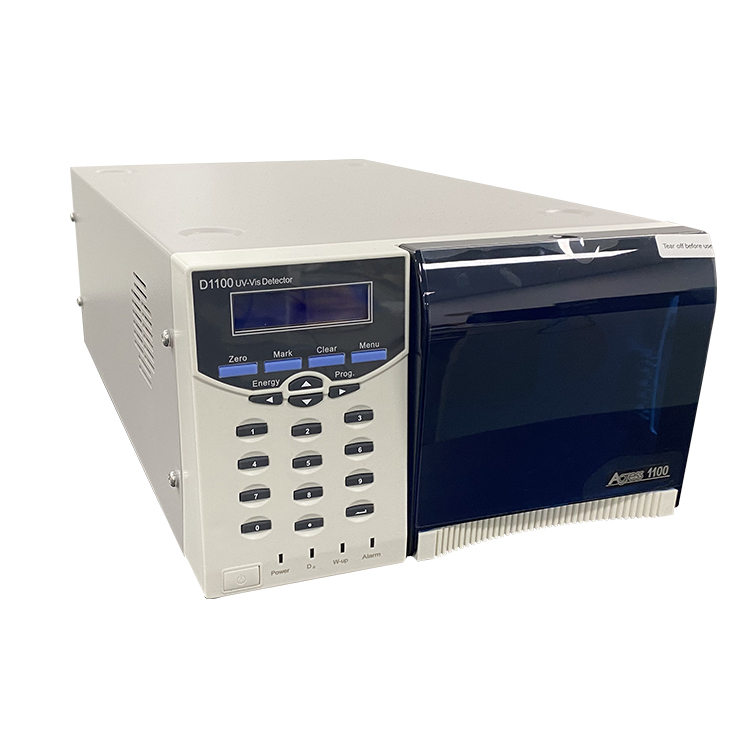

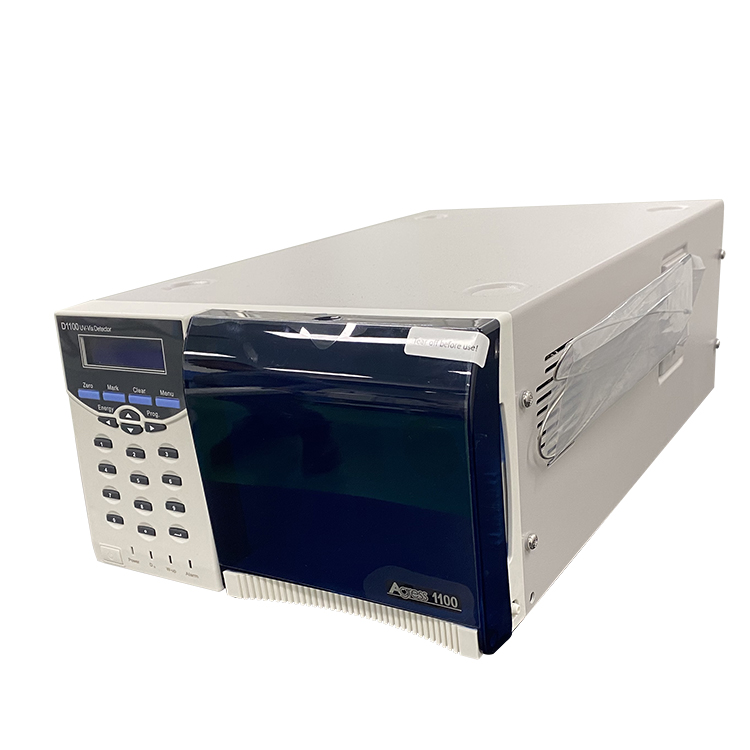

 UV/VIS Detector

1

1）Wavelength Range:190-700nm

2）Baseline Noise: ≤±1×10^-5AU

3）Baseline Drift: ≤2.0×10^-4AU/h

4）minimum Detectable Concentration: 4.0×10-9g/mL (Naphthalene in Methanol Solution)

5）Detector Cell: Optical Path--10mm, Volume--10μL

6）Light Source: Deuterium Lamp

7）Power: AC 220V±10%, 50Hz

8）External Dimension

(Length x Width x High): 420mm×260mm×160mm

1.3

7725i Manual Injector

1

1.4

Supersil ODS2 5um 4.6*250mm

1

1.5

Kromstation Workstation (Without Computer & Printer）

1

1.6

VB1100 Valve support

1

1.7

System Kits (tubing, fittings, wreches and cables)

1

1) Temperature range: R.T. +5.0 to 99℃, settable in 0.1℃ increments

2) Temperature accuracy: 0.1℃

3) Temperature stability: ±0.1℃

4)Power requirements: AC 220V±10%, 50Hz/150W

5)Dimension(Length x Width x High): 120mm×65mm×500mm
